FRONT LoADER

Front loaders & devices powered by Hauer

Geräte:

Front loader POM-LX
Accessories
Front loader XB Bionic
Front loader POM-L

The Lintrac series is tailor made for front loader work.

POM-LX

Top block console system

The frameless mounting system is self-locking and wear-resistant. The sophisticated design ensures excellent visibility of the working area. The coupling parts on the front loader are fitted with trapezoidal wedge bolts and bevel wedges, which make it comfortable to retract into the console and provide a stable, positive connection to the console. The front loader is secured by adjustable double eccentric bolts.

Comfortable coupling...

...of the hydraulic working equipment

The coupling plugs for the hydraulic additional functions are mounted on the side of the quick-change device for easy access. Instead of the standard coupling plug for the additional functions, a 2-fold or 4-fold Synchro-Lock is also available.

MCV valve block system

Up to four additional hydraulic functions can be added thanks to the modular design.

Professional Front loader

with conventional, external parallel guidance.

• Fully hydraulic front loader with stabiliser loading arm and parallel guidance
• Quick change device, prepared for load hooks
• Modular hydraulic valve block system "MCV" installed protected in the cross beam profile
• Double acting lifting cylinders
• Synchronous tilting cylinder, secured by double shock valve
• Replaceable bronze bearing bushes in all bearing positions
• Hardened, replaceable ball joint bearings
• Stopcock in the lifting line
• Hydraulic lines mounted protected on the underside of the loading arm
• 3rd hydraulic additional function
• SMS shock absorber system, mechanically switchable
• Synchro-Lock upper section with E-coupling (3-pin)

Exact mechanical parallel guidance with ideal retraction and dumping angles of the tools

The construction of the LX loading arm is characterized by clear lines. In conjunction with the optimal arrangement of the valve block, it guarantees a very good view of the work equipment.

POM-L

Light construction

• Fully hydraulic front loader with parallel guidance
• Quick change device
• Hydraulic lines mounted protected on the underside of the loading arm
• Modular hydraulic valve system
• Double acting lifting cylinders
• Differential tilting cylinder, secured by a tandem safety valve
• Stopcock in the lifting line
• 3rd hydraulic additional function
• SMS shock absorber system, mechanically switchable
• Syncro-Lock upper section with E-coupling (3-pin)
• Replaceable bearing bushes in all bearing positions

Light in design - strong in performance: Lindner POM-L front loaders powered by Hauer are equipped with mechanical parallel guidance.

For optimal maintenance, all bearing points are easily accessible from the side and are equipped with large bearing pins and exchangeable bearing bushes.

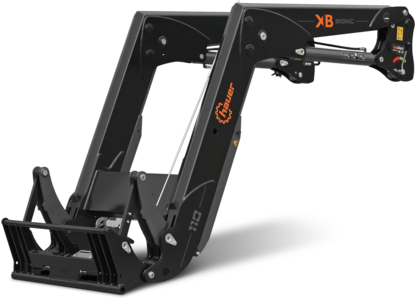

XB BIONIC

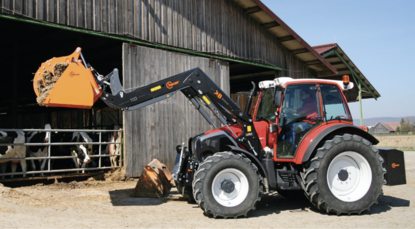

professional front loader

with internal parallel guidance and innovative X-kinematics.

• Fully hydraulic front loader with internal mechanical parallel guidance
• Device quick-change device, prepared for load hooks
• modular hydraulic valve block System MCV, protected installed in the double-walled cross member profile
• Double-acting lifting cylinders
• Differential tilt cylinder secured by a tandem safety valve
• Interchangeable bronze bushings in all bearings
• Stopcock in the lifting line
• Hydraulic lines protected mounted on the loading swing underside
• Adjustable level indicator, parking stands, and much more

With the XB Bionic, the X-kinematics and the construction of the triangular and longitudinal rocker enable the tilting cylinder to be fully integrated into the loading arm.

Thanks to the X-kinematics, the greatest possible force of the cylinder is used when the implement is retracted and a faster movement is achieved when it is tilted out.
